Celestron Nexstar 6 SE Remounting

Celestron Nexstar 6 SE Tripod Replace-ment

The deck observatory floor is too narrow with elevational step levels to accommodate Celestron's tripod for the Nexstar 6 SE telescope.

The solution is found with an IKEA item of the proper diameter, thickness, shape and stability.

In one possible solution under consideration, the tripod is removed and the telescope GOTO mount sets on top of  a bar stool. The bar stool feet fit on the largest clear floor area so the telescope can operate remote and outdoors. The Celestron tripod for the Nexstar 6SE is a paramount of rock solid stability. It's unfortunate the wide stance of the extended tripod legs are not conducive to fitting on all deck and balcony floor space. However, the solid bar stool makes a good substitute. Unfortunately the bar stool is not high enough to peer over the deck railing and the idea must be discarded.

Deck 2 has a 16-inch width floor with a railing 49.5" high. The telescope is 16" from the base bottom to the top of the tube when pointed horizontal. The circular base is about 6.5" in diameter.

904.621.24 Ikea 2 is 15.4" wide and 29.2" tall.

                   (16+29.2=45.2", 49.5-45.2=4")
                   The legs will fit on the floor.
                   The height with telescope is 4-inches below the rail.
                   The bar stool is not tall enough.

Is there another solution using the tripod only?  Open the window door and insert one leg of the tripod through onto the far end of the deck floor butted up against the limit, while the remaining two legs are inside the room. The height is full tripod adjustable.

This laundry shelf unit is 37" tall and 14" wide, wire mesh, 3 shelves. The telescope will set (37+16=53" to the top of horizontal tube)
https://www.ikea.com/my/en/p/omar-1-shelf-section-grey-green-bamboo-s29401554/#content
This also is not tall enough. Aim for a 45" tall shelf unit (114 cm), the Ikea table is 30" high and 77 cm is 30". This is not tall enough.

Look for a shelf unit ideally from 44 to 46" tall. (112 - 117 cm)

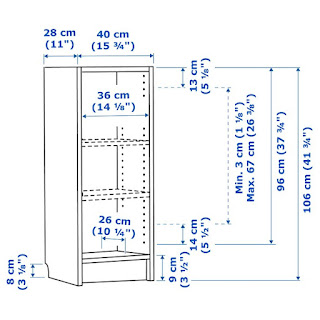

Bookcase one may be too narrow and tip over too easily. This IKEA book unit 003.515.78


This is only 15.75-inches wide. Is wider available? The height is good at 41.75".





*** Purchased Sat. Apr. 9, 2022 online *** Bookcase two: Nine in stock. $66, this is 41.75" tall and a better more stable 31.5" wide. It's 11" deep and will fit the 16" deck floor. IKEA #403.515.81
Package is 19.4 kg or 43 lbs. The unit will be delivered and assembled.


Max load per shelf is 30 kg (66 lbs). The telescope OTA and the GOTO mount are about 22 lbs. at one third shelf load capacity. The surface is made from natural wood veneer.

It has 2 adjustable shelves (adaptable space in between shelves). The base material is particle board, ash veneer, stain, clear acrylic lacquer. The back is fiberboard, foil. It sets on four plastic feet.


You could slide this onto the deck for use and return indoors when finished or try bungi roping to the railing to prevent tipping (through the two openings at the top of the unit and then cover the unit with a motorcycle covering).

Add non-slip rubber cut to fit the top and duct tape on so wind or earthquake does not take it. Put the large Meade battery on the adjusted bottom shelf to add weight stability. Operate with the deck door slightly ajar to access the PC computer to control the CMOS camera initially.

Manage the camera with the USB cable. The app SkyPortal on the iPhone 10 is not working because the compass does not work. However, the compass and app are working on an iPhone 5 smartphone. To remote the computer, use the iPhone 5 and app or a USB cable feed.

About the Meade Battery LXPS7
Manufacturer part number: 606001. Meade Power Supply, 12V, 7 amp hour capacity. For field operation of a 12V telescope. The battery can manage the telescope and USB devices requiring power.

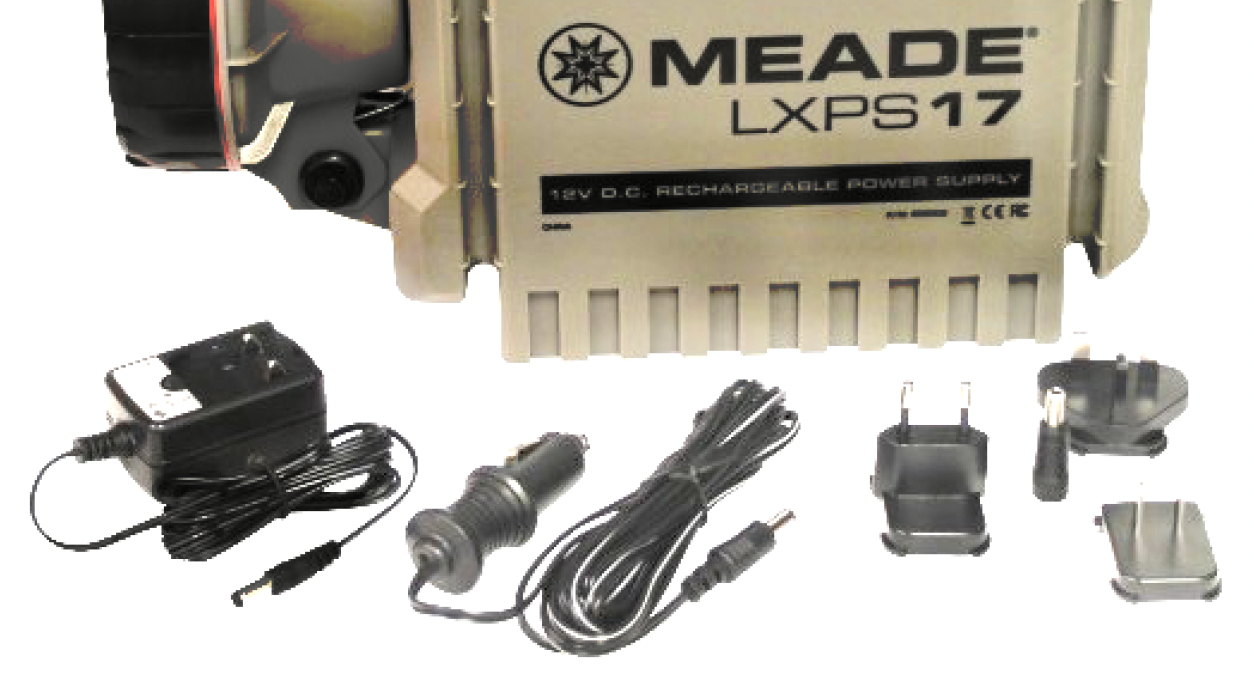

With Meade’s new LXPS 17 Rechargeable Portable Power Supply you can easily power your telescope and electronic devices in the field. 12V, with a massive 17 amp-hour capacity. Connect your equipment using the two included 12V cigarette lighter ports, two USB ports, or through the positive/negative terminals on the back. The LXPS includes a built-in circuit breaker and fused circuit to protect your valuable equipment. Includes both USA and international type AC adapter plugs so you’ll be able to recharge the LXPS anywhere you travel. The Meade LXPS also includes an adjustable super bright 30 LED spotlight and white flashlight with red filter attachment, perfect for setting up and tearing down in the dark. Additionally, the LXPS 17 includes an AM/FM radio, siren, and tethered detachable light. The LXPS can also be used for emergency situations like jump starting your car battery. With 17-amp hours, the LXPS 17 is the must-have accessory for star parties, long observing sessions and the dedicated astronomer.

Features a rechargeable lead acid 7AH battery and includes wall charger, LED charge level indicator, two 12V cigarette cord type outputs, power cord (cigarette plug type), hinged LED spotlight, hinged high output LED spotlight, flashlight with red lamp cover and strobe function, two USB outputs rated at 5V, built-in carry handle, shoulder carry strap, and one set of 12V output posts. Product is fuse protected with a replaceable fuse. Weight is 8.4 pounds. Size 11.3 x 9.3 x 5.2" / 28.7 x 23.6 x 13.2 cm.
